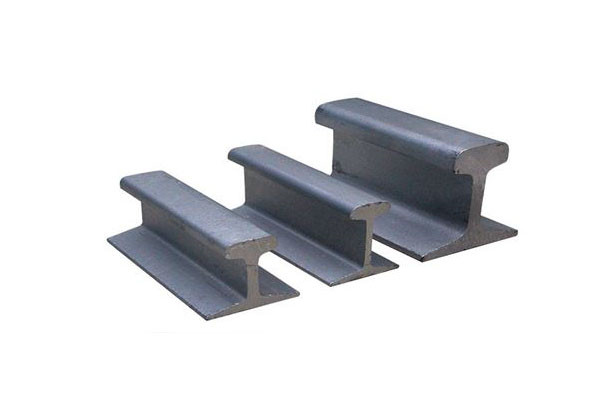

Chinese Standard Rail
|
Name of Commodity |
Specificaton |
Materials |
Standard of Products |
Theory Weight |
Length of Dimension (m) |
Packed in bundle with iron wire (pcs/bundle) |
|
Light Rail |
4kg/m |
Q235 |
Q/YYG001-2008 |
4kg/m |
6,8,9,10 |
75 |
|
8kg/m |
Q235 |
Q/YYG001-2008 |
8.42kg/m |
55 |
||
|
12kg/m |
Q235 |
GB11264-89 |
12.2kg/m |
36 |
||
|
15kg/m |
Q235/55Q/50Q |
GB11264-89 |
15.2kg/m |
28 |
||
|
18kg/m |
Q235/55Q/50Q |
YB222-63 |
18.02kg/m |
21 |
||
|
22kg/m |
Q235/55Q/50Q |
GB11264-89 |
22.3kg/m |
21 |
||
|
24kg/m |
Q235/55Q/50Q |
Q/YYG001-2008 |
24.46kg/m |
21 |
||
|
30kg/m |
Q235/55Q/50Q |
GB11264-89 |
30.1kg/m |
15 |
||
|
Heavy Rail |
38kg/m |
U71Mn/U71/45Mn |
GB2585-2007 Q/YYG002-2008 |
38.733 |
12,12.5 |
10 |
|
43kg/m |
U71Mn/U71/45Mn |
GB2585-2007 Q/YYG002-2008 |
44.653 |
10 |
||
|
50kg/m |
U71Mn/U71/45Mn |
GB2585-2007 Q/YYG002-2008 |
51.514 |
10 |
||
|
Crane Rail |
QU70 |
U71Mn |
YB/T5055-93 |
52.8kg/m |
12,12.5 |
10 |
|
QU80 |
YB/T5055-93 |
63.69kg/m |
10 |
|||
|
QU100 |
YB/T5055-93 |
88.96kg/m |
5 |
|||
|
QU120 |
YB/T5055-93 |
118.1kg/m |
5 |
DIN536 Rail
| Rail Type | Rail Height | Flange Width | Head Width at Top | Head Width at Base | Head Height | Web Thickness | Flange Thickness at Edge | Flange Thickness at Center | Weight (per meter) |
| RH | FW | HT | HB | HH | WT | FE | FM | kg | |
| A55 rail | 65 | 150 | 55 | 55 | 28.5 | 31 | 9 | 17.5 | 32 |
| A65 rail | 75 | 175 | 65 | 65 | 34 | 38 | 10 | 20 | 43.5 |
| A75 rail | 75 | 200 | 75 | 75 | 39.5 | 45 | 11 | 22 | 56.6 |
| A100 rail | 100 | 200 | 100 | 100 | 45.5 | 60 | 12 | 23 | 75.2 |
| A120 rail | 105 | 220 | 120 | 120 | 55.5 | 72 | 12 | 30 | 101.3 |
JIS Rail
|
Japanese Standard Steel Rail |
|||||||
|
SIZE |
DIMENSION(MM) |
WEIGHT (KG/M) |
MATERIAL |
LENGTH (M/PCS) |
|||
|
Head Width |
Height |
Base Width |
Web Thickness |
||||
|
JIS15KG |
42.86 |
79.37 |
79.37 |
8.33 |
15.2 |
55Q/ U71MN/ 900A |
9-10 |
|
JIS 22KG |
50.8 |
93.66 |
93.66 |
10.72 |
22.3 |
9-10 |
|
|
JIS 30A |
60.33 |
107.95 |
107.95 |
12.3 |
30.1 |
9-10 |
|
|
JIS 37A |
62.71 |
122.24 |
122.24 |
13.49 |
37.2 |
10-25 |
|
|
JIS 50N |
65 |
153 |
127 |
15 |
50.4 |
10-25 |
|
|
CR 73 |
100 |
135 |
140 |
32 |
73.3 |
10-12 |
|
|
CR 100 |
120 |
150 |
155 |
39 |
100.2 |
10-12 |
|
ASCE Rail
|
America Standard Steel Rail (ASTM A1 / AREMA) |
|||||||
|
Size |
DIMENSION(MM) |
WEIGHT(KG/M) |
MATERIAL |
LENGTH(M/PCS) |
|||
|
Head Width |
Height |
Base Width |
Web Thickness |
||||
|
ASCE25 |
38.1 |
69.85 |
69.85 |
7.54 |
12.4 |
700 |
6-12 |
|
ASCE30 |
42.86 |
79.38 |
79.38 |
8.33 |
14.88 |
||
|
ASCE40 |
47.62 |
88.9 |
88.9 |
9.92 |
19.84 |
||
|
ASCE60 |
60.32 |
107.95 |
107.95 |
12.3 |
29.76 |
||
|
ASCE75 |
62.71 |
122.24 |
122.24 |
13.49 |
37.2 |
900A/1100 |
12-25 |
|
ASCE85 |
65.09 |
131.76 |
131.76 |
14.29 |
42.17 |
||
|
90RA |
65.09 |
142.88 |
130.18 |
14.29 |
44.65 |
||
|
115RE |
69.06 |
168.28 |
139.7 |
15.88 |
56.9 |
||
|
136RE |
74.61 |
185.74 |
152.4 |
17.46 |
67.41 |
||
|
175LBs |
109.86 |
152.4 |
152.4 |
38.1 |
86.8 |
||
