Product Description

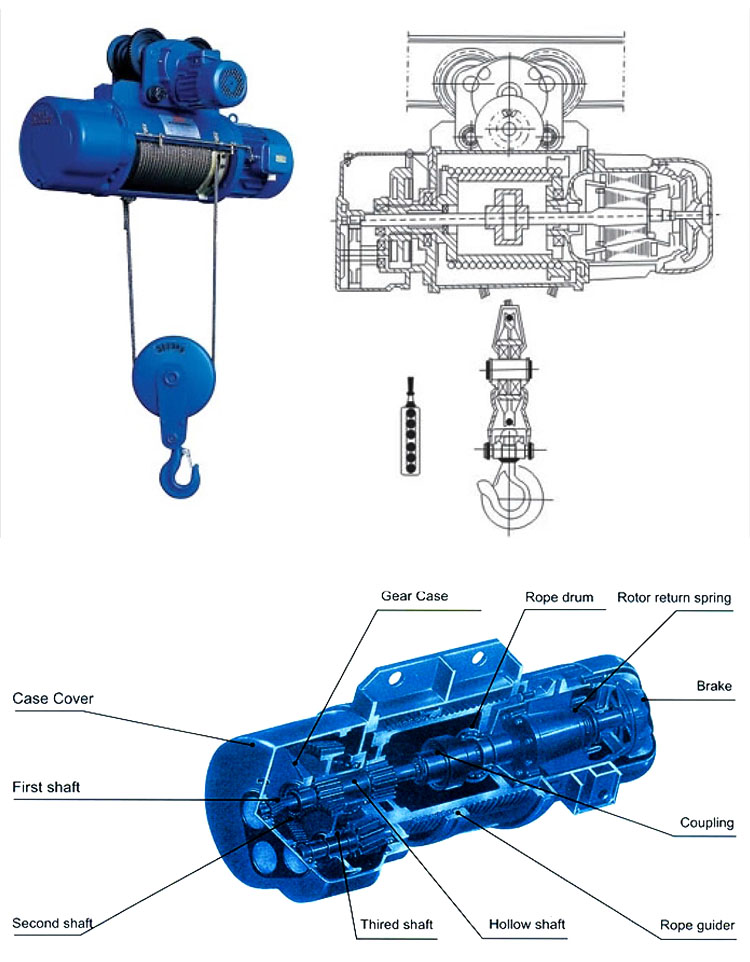

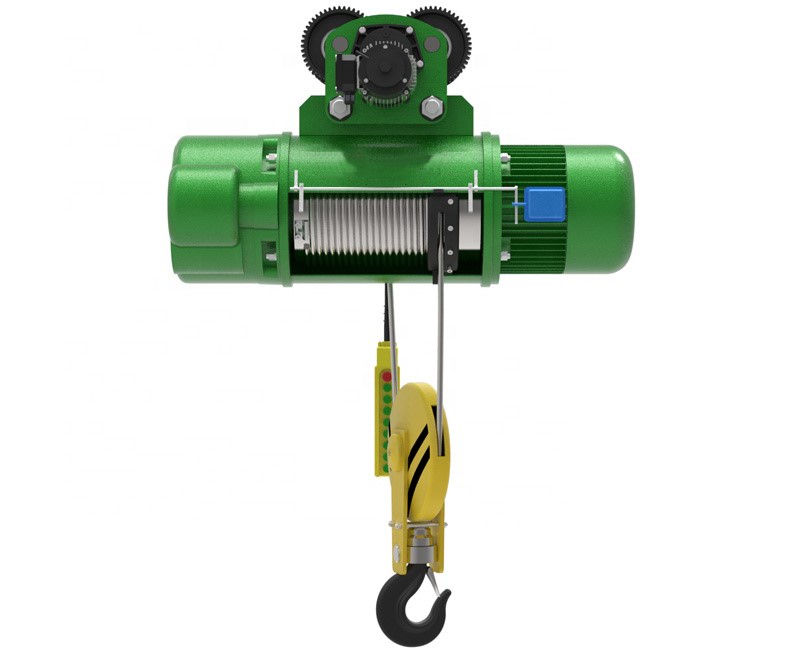

CD,MD wire rope hoist is a kind of light and small lifting equipment, which can be installed on single/double girder overhead crane, gantry crane and jib crane. With a slight modification, it can also be used as a winch. Its work duty is M3, M4, M5.
CD,MD wire rope hoist is widely used in factories, mines, ports, warehouses, freight yards, shops to improve work efficiency.
CD model is with normal lifting speed, which can meet the general requirements of use; MD model is with normal and low lifting speed, which has a more application scope than CD model. Thus, with low lifting speed, MD model can meet the requirements of precise loading and unloading, sand box mold clamping, and machine maintenance.
To meet the requirements of heavy weight lifting, we can design and produce the improved type CD,MD hoist with square shell to have a max capacity of 32 tons.
Technical Specifications
CD Hoist Specifications
|
Model |
Lifting Weight |
Lifting Speed |
Running Speed |
Hoisting Motor |
Running Motor |
Weight |
||
|
t |
m/min |
m/min |
Model |
Power kW |
Model |
Power kW |
kgs |
|
|
CD 1T-12M |
1 |
8 |
20 |
ZD22-4 |
1.5 |
ZDY11-4 |
0.2 |
172 |
|
CD 3T-12M |
3 |
8 |
20 |
ZD41-4 |
7.5 |
ZDY12-4 |
0.8 |
597 |
|
CD 5T-12M |
5 |
8 |
20 |
ZD41-4 |
7.5 |
ZDY21-4 |
0.8 |
597 |
|
CD 10T-12M |
10 |
7 |
20 |
ZD51-4 |
13 |
ZDY21-4 |
0.8 |
1100 |
|
CD12T-12M |
12 |
3.5 |
18 |
ZD51-4 |
13 |
ZDY21-4 |
0.8 |
1200 |
|
CD 16T-12M |
16 |
3.5 |
18 |
ZD51-4 |
13 |
ZDY21-4 |
0.8 |
1200 |
|
CD 20T-12M |
20 |
4.2 |
14 |
ZD52-4 |
18.5 |
ZDY21-4 |
0.8 |
1930 |
|
CD 32T-12M |
32 |
3 |
16 |
ZDx62-6 |
18.5 |
ZDY22-4 |
1.5 |
2950 |
|
Model |
Lifting Height |
Lifting Speed |
Running Speed |
Hoisting Motor |
Running Motor |
Weight |
||
|
t |
m/min |
m/min |
Model |
Power kW |
Model |
Power kW |
kgs |
|
|
MD 1T-12M |
1 |
8/0.8 |
20 |
ZDS22-4 |
1.5/0.2 |
ZDY11-4 |
0.2 |
199 |
|
MD 3T-12M |
3 |
8/0.8 |
20 |
ZDS41-4 |
7.5/0.8 |
ZDY12-4 |
0.8 |
654 |
|
MD 5T-12M |
5 |
8/0.8 |
20 |
ZDS41-4 |
7.5/0.8 |
ZDY21-4 |
0.8 |
654 |
|
MD 10T-12M |
10 |
7/0.7 |
20 |
ZDS51-4 |
13/1.5 |
ZDY21-4 |
0.8 |
1150 |
|
MD 12T-12M |
12 |
3.5/0.35 |
18 |
ZDS51-4 |
13/1.5 |
ZDY21-4 |
0.8 |
1280 |
|
MD 16T-12M |
16 |
3.5/0.35 |
18 |
ZDS51-4 |
13/1.5 |
ZDY21-4 |
0.8 |
1280 |
|
MD 20T-12M |
20 |
4.2/0.42 |
14 |
ZDS52-4 |
18.5/2.2 |
ZDY21-4 |
0.8 |
1450 |
|
MD 32T-12M |
32 |
3/0.3 |
16 |
ZDx62-6 |
18.5/2.2 |
ZDY22-4 |
1.5 |
2950 |
